May is the first full month since we increased our
Solar Panel capacity from 640W to 1kW.
May has not been a good month for Solar power but we
still got more than twice the power we used for propulsion from the sun. It is noticeable how much less we need to run
the generator to keep our batteries charged.
It is now quite practical for us to cruise and live on our boat for a whole week without running the generator. Since we cook with an electric oven, electric hob and use an electric kettle, that is impressive.
Don’t tell Cheryl but I now have a cunning plan to add
two more panels bringing our capacity up to 1.5kW so that a greater proportion
of our total electricity usage comes from the sun and we can run out generator
35:41 hours cruising
56 miles covered
13 days cruising, 18 days moored
Genset use 19hrs
Rain – too much ! !
Propulsion 40kWhrs (17%)
Domestic 197kWhrs (83%)
Solar Panels 89kWhrs (38%) (over twice what we used for propulsion)
Genset 148kWhrs (62%)
Power required for propulsion
1,138 watts per hour cruised
725 watts per mile cruised
Note: Cruising time is based on time from unmooring to starting to moor up. It excludes stops for water and fuel, but includes waiting for locks and sitting in locks waiting for them to fill or empty.
After a lot of procrastination I finally wired in the solar panel we fixed in place last summer.
It takes our panel capacity from 640Watts to 1kW. I’m pleased to see the difference it makes, so have some figures to share.
With the easing of lockdown and the better weather, we are now cruising in a more normal pattern for us, which admittedly is slowly. I’ve been very encouraged by the results we have seen. So far the panels are providing a lot more power than we use for propulsion and over all 51% of all the electricity we have used in the past two weeks, and when you consider we cook electric I think that is pretty impressive. These are the figures for the past 2 weeks, mid April, weather predominantly sunny with some light cloud. Cruising stats • 13:47 hours cruising • 21.9 miles covered • 6 days cruising, 8 days moored. Electricity usage over past 2 week • Total 92 kW hrs • Propulsion 12kW hrs (14%) • Domestic 79 kW hrs (86%) Sources of electricity over past 2 weeks • Solar 47 kWhrs (51%) • Gen set 38 kWhrs (42%) • Battery 7 kWhrs (7%) (note – the 7kWhrs of power that came from the batteries means the batteries had less charge in them at the end of the two weeks then they did at the start by 7kWhrs, which is 13% of our battery capacity.) Power required for propulsion • Per hour cruised – 945 watts • Per mile of cruising – 594 watts • While passing moored boats about 600 watts • At average canal cruising speed (2.5-3mph) 1.7-1.8 kW
Only once in the past 14 days did we use more power for propulsion than we generated that particular day from the solar panels. That was the day we cruised for 4.5 hours downstream on the River Soar and then upstream on the River Trent. Although the boat travels faster and is more efficient on rivers, it still requires more power than on a canal. But even so, we still generated 89% of the propulsion power through the solar panels, so only 11% came from our batteries.
Based on the past 4.5 years records, we only cruise on average once every 2.4 days. So taking into consideration our non-cruising days alongside our cruising days, the solar panels will provide far more power than we need for propulsion. In the past two weeks it has been 3.5 times as much, or 363% which means that even if we doubled the amount of cruising we do, the solar panels will still provide more power than we need for propulsion.
It is also interesting to see how much the power gained is increasing week by week. Two weeks ago the peak power was just 11.5 Amps now, at the end of April, it is over 15 Amps. I expect those figures to continue improving throughout May and June.
For other boaters reading this, you might be horrified at how much electricity we use for domestic purposes. To be fair, we are a gasless boat. We cook electric, use a 240v fridge, an electric kettle and toaster, and the washing machine heats from a cold fill. We run a diesel boiler for heating and hot water. Not to mention the other gadgets that keep us connected to the wider world.
Previous post about our solar set up https://nb-firecrest.co.uk/taking-advantage-of-the-sunshine/
Can I also take this opportunity to apologise that our contact and comments options are still disabled.

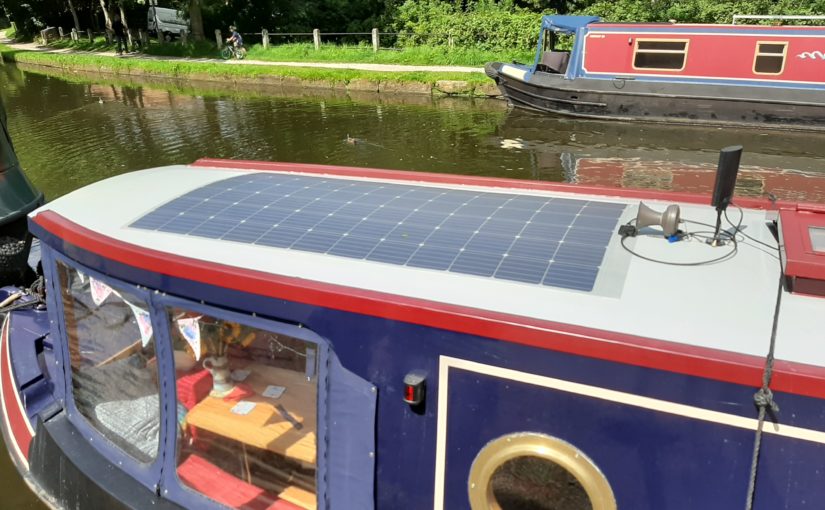

We didn’t take into account the full advantages of solar panels when we were designing Firecrest so we didn’t have them incorporated into the build. However Eric did foresee that we might retro fit them so we always had that option available. Last April, we stuck 4 flexible panels to the roof. Here’s what I wrote at the time
Being boaters, cruising took priority. Then a certain amount of fear and trepidation set in as Eric needed to drill holes in the roof in order to wire them in. Consequently that didn’t get done until we were laid up in Liverpool. We decided the best option to get the wires to the battery management system would be through ports drilled either side of the bathroom pancake vent.
With the wiring channelled out of sight, behind the calorifior and through the dinette seating to the controller under the dinette.
Ironically as shorepower was included in our mooring fee we didn’t reap the benefit from solar until we started cruising in late June. Eric has promised me and those interested that one day he will share all the facts and figures. Photonic Universe has been incredibly helpful advising and supplying our panels so last month we opted to add a fifth panel. As all continual cruisers know getting deliveries to a boat needs a little creative thinking and frequently involves helpful family. This time it was my mum’s turn in their camper van to kindly provide an address and onward transport. The huge packaging was manhandled onto the boat and all bode well for us to install a few days later while moored at Appley bridge.
The sun was shining, the towpath was wide and our enthusiasm at its peak. We unwrapped our parcel and to our dismay discovered the panel was cracked. And it was a Sunday, no way to contact the company for another 24 hours. This was so frustrating, not so much the delay in fitting a new panel, but knowing we were well over the deadline for reporting a damaged in transit parcel, and when and where we would could organise a replacement.
As we have already said Photonics universe is a great company, and after a few photos and a bit of forward planning we realised the advantage of “the closed down canalside pub” … They still have good mooring, postcodes and car parks. Dover Lock Inn, is sadly one of those pubs, and Photonics pulled enough strings to organise both a pick up and drop off on the same day. This time the panel was inspected instantly and found to be in good working order
Although we had found a more convenient place to store this large panel, the weather was in our favour to stick it onto the roof the next day. We had opted to go for one larger panel rather than a further two more identical ones. The roof and edges of the panel had protective masking tape applied to help us stick it in place accurately.
Although the panel isn’t too heavy, it’s large and flexible so very vulnerable to being damaged. We practiced our manoeuvres several times before Eric was allowed anywhere near the glue. He uses CT1, which although it’s £10 a tube, (and we used 4) it’s waterproof, flexible and incredibly strong.
Together, we finally lowered the new panel into place, but you’ll have to take my word for that cause I couldn’t take photos at the same time. We spent a lot of time carefully easing out any air gaps and weighting it down with our 20kg boat ballast weights
All in all a very satisfying days work. Now I just have to find a CRT rubbish point where I can get rid of a colossal bag of card board. Cause right now it’s living in our shower.
Did I say getting rid of the rubbish was all that was left to do. Come back in 12 months to see if this new panel is wired in cause right now it’s just looking pretty and not earning it’s keep.
• Some quick facts.
• Peak power: 350W
• Maximum power voltage: 39.1V
• Maximum power current: 8.7A
• Open circuit voltage: 47.7V
• Short circuit current: 9.0A
• Dimensions: 2024 x 99a1 x 2 mm
• Weight: 6.82 kg
(Technical data to be written by Eric later) We’ve long believed that solar panels are a good idea for narrowboats. But the complexity of adding them to an all electric boat the way that Eric wanted seemed a step too far for our builder. For the sake our our sanity we didn’t peruse it initially, but during our week at Beeston things fell into place for us to rectify this compromise.
Eric had been researching panels on and off for several months. And the panels that fitted our bill came from Photonic Universe, a company in Orpington, Kent. We had a family event to attend in Sussex, so hired a car large enough to take advantage of close proximity and transport 4 panels back to Firecrest.
You’d think it was Christmas morning when Eric unpacked the boxes on our bed.
My concern was, “where the heck are we going to store these until they are fitted” but Eric’s enthusiasm was such, that it wasn’t much of an issue. We were hoping for cool overcast dry weather and that’s what we got the very next day, so it was out onto the bank to unpack properly
First we needed to check which way we were going to position the panels. Bearing in mind that retro fitting panels means working around pancake vents, centre ropes and dog boxes, we had a lot to consider. Our choices were horizontal across the width of Firecrest or lengthwise, so we played around also taking into consideration the need to wire them into the boats electrics.
We opted for length ways down the boat, 2 in front and 2 behind the pancakes, rather than width ways across the boat.
First job though, was to wash the roof thoroughly. We don’t call him Flash Gordon for nothing.
Then Eric used masking tape to mark out the chosen positions, and to protect the roof from any excess glue squelching out. He used CT1 glue as its both waterproof and flexible as well as being virtually impossible to unstick.
We worked as a team lifting each panel into place.
We smoothed the panels down and held them in place with our ballast weights whilst the glue cured.
Stopping for a cuppa after each one, and then completing second pair the next day.
After a week at Beeston we were itching to move on, so we cruised the 5 miles along the Beeston Cut onto the River Trent outside the County Hall. Here Eric was able to add a bead of glue to mastic the edges of the panels.
All four panels are now safely in position, awaiting the far more complex stage of the project. Wiring in and connecting them to our existing system.
And just before anyone comments on the ropes across the panels in our header photo, we know this will reduce our output, generally speaking we will only have one centre rope and it fits between the panels. We have a secondary extra long rope available for deep river locks.
